    2025 Water Source Thermal Industrial Air Curtain For 0.9m , 1.2m , 1.5m Width Door

    Ask Lasest Price
    Brand Name : Theodoor
    Model Number : RM-40**S
    Certification : ISO 9001, ISO14001, CCC
    Price : Negotiation
    Payment Terms : T/T or L/C at sight
    Supply Ability : 5,000pcs per month
    Delivery Time : 30 working days after received the payment
    • Product Details
    • Company Profile

    2025 Water Source Thermal Industrial Air Curtain For 0.9m , 1.2m , 1.5m Width Door


    Water Source Industrial Door Thermal Air Curtains For 0.9m , 1.2m, 1.5m Width Door


    Product Description

    Metal casing

    Full metal body, high anti-corrosion, elegant and luxurious body;


    High Efficiency

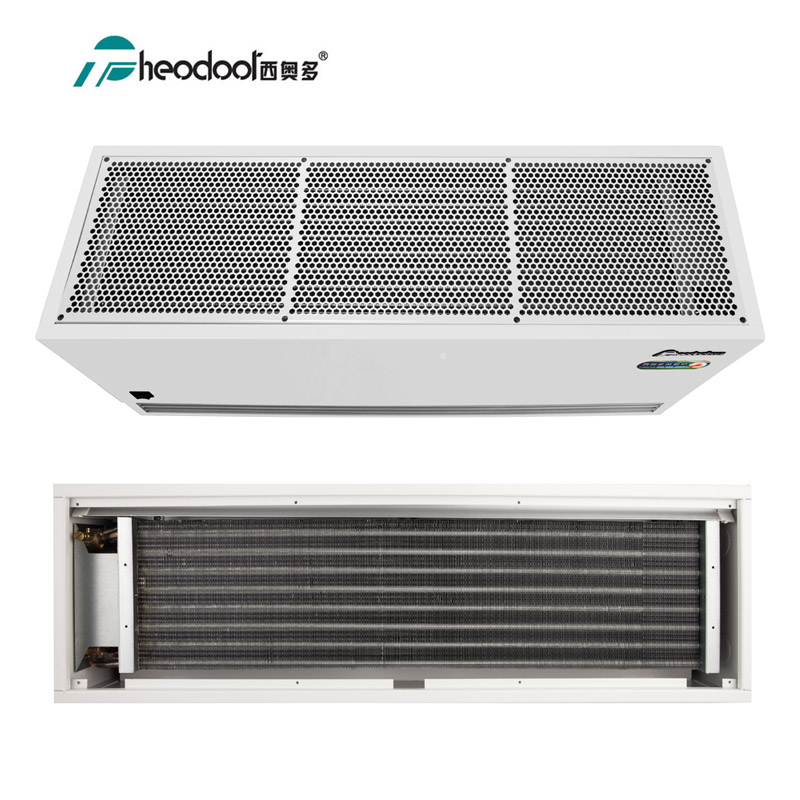

    Multi-layer compound fan coil, suitable for hot or cold water with low consumption and high heat dissipation.

    Optimized motor with safe and reliable performance; Running for 5000 hours continuously without failure.


    Humanized Design

    Preset left and right side 2 ways water inlets, thus, can meet different mounting occasion.

    Exclusive stainless aluminum alloy condensate water collection plate much more suitable for commutative use in summer and winter.


    Easy Control

    Adopting button switch or remote control, with high & low air velocity.


    Specifications:


    Model

    RM-4009-S

    RM-4012-SRM-4015-S
    Power (V/Hz)220/50220/50220/50
    Input power (w)230 /180350 /300430 / 380

    Air speed

    (m/s)

    Hi141414
    Lo111111
    Air volume (m3/h)Hi280037504700
    Lo215028803620
    Noise level (dB)<55<57<59

    Temperature of water

    100-65℃

    Water flow speed (m/s)0.490.650.82
    Water volume (kg/h)87811701460
    Water resistance (Pa)203627153390
    Temperature of outlet air (℃)535353
    Heat dispersing volume (KW)202836

    Temperature of water

    90-60℃

    Water flow speed (m/s)0.390.520.65
    Water volume (kg/h)69811701460
    Water resistance (Pa)162021602700
    Temperature of outlet air (℃)494949
    Heat dispersing volume (KW)162127


    Applications:
    Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.

    Company Information

    National craftsman, Originality manufacturing

    Theodoor industrial park covers the area of 30,000 square meters. We had applied the most advanced industrial equipments and detecting instruments. There are automatic operation assembly lines, CNC production and executedimplementationof ERP management, 6S management and strict quality system management.

    Theodoor strives for design aesthetics, power performance, material testing, research and development, technology and performance. Select new security, environmental protection, wear-resistant materials, use advanced manufacturing technique to extend product lifetime, to ensure that products can be operated more secure, environmentally friendly (non-toxic, odorless, fire-resistant) in a variety of conditions.


    From “MADE IN CHINA” to “CREATED IN CHINA”

    Theodoor has acquired National Invention Patents, Utility Model Patents and Design Patents for more than 80 items, leading the quality and performance of product upgrading in the industry. The company and products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications. Over 16 year’s originality manufacturing, Theodoor has created worldwide quality products.
