    Theodoor Air Curtain Keeping Indoor Air Quality For Air Conditioning Room Saving AC Energy

    Ask Lasest Price
    Brand Name : Theodoor
    Model Number : FM-35**-L/Y S5
    Certification : ISO 9001, ISO14001, CE
    Price : negotiation
    Payment Terms : T/T or L/C at sight
    Supply Ability : 15,000pcs per month
    Delivery Time : 25 working days after received the payment
    • Product Details
    • Company Profile

    Theodoor Air Curtain Keeping Indoor Air Quality For Air Conditioning Room Saving AC Energy

    S5 Commercial Air Curtain For Shop, restaurant, hotel...

    Feature:

    New fashion specialty designing, unique curve arc-shape, full aluminum body, won’t be rusty and discoloration;
    The body is without visible screw, elegant appearance;

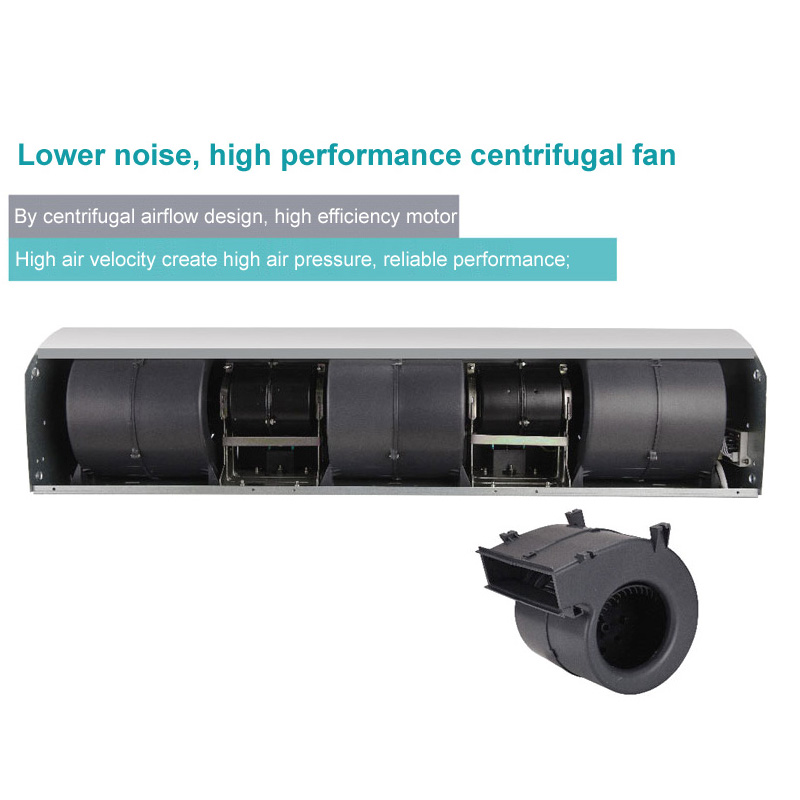

    Adopting high-performance motor, safe and reliable; using designed centrifugal turbine with strong wind;
    Adopting updated remote control with high and low speeds operation;
    There are selectable four colors: white, silver, brown, red;
    Suitable for installation in luxury hotel, supermarket chains, large stadiums and airport terminals and other entrances of high-grade places etc;
    Installation height: 3-4m

    Specifications:

    Model

    Size
    (mm)

    Volt./ Freq.

    Input power(W)

    Air flow
    (m3/h)

    Air speed
    (m/s)

    Noise
    (dB)

    N.W (kg)

    Hi

    Lo

    Hi

    Lo

    Hi

    Lo

    FM-3509-L/Y S5

    900x220x240

    220v/50Hz

    230

    200

    1100

    600

    13-16

    52

    49

    13.5

    FM-3510-L/Y S5

    1000x220x240

    250

    220

    1200

    900

    52

    49

    14

    FM-3512-L/Y S5

    1200x220x240

    290

    260

    1500

    1200

    53

    50

    16

    FM-3515-L/Y S5

    1500x220x240

    380

    350

    1900

    1500

    55

    53

    20.5

    FM-3518-L/Y S5

    1800x220x240

    450

    420

    2280

    1800

    57

    54

    24

    FM-3520-L/Y S5

    2000x220x240

    470

    440

    2520

    2100

    28

    56

    27.5

    FM-4009-L/Y S5

    900x220x240

    220v/50Hz

    300

    270

    1400

    1000

    16-20

    57

    54

    13.5

    FM-4010-L/Y S5

    1000x220x240

    320

    290

    1550

    1100

    57

    54

    14

    FM-4012-L/Y S5

    1200x220x240

    400

    370

    1900

    1500

    58

    55

    16

    FM-4015-L/Y S5

    1500x220x240

    500

    470

    2300

    1900

    61

    58

    20.5

    FM-4018-L/Y S5

    1800x220x240

    620

    590

    3255

    2855

    63

    61

    24

    FM-4020-L/Y S5

    2000x220x240

    620

    590

    3255

    2855

    64

    62

    27




    What is Air Curtain?


    Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.



    Applications: door entrance


    Business OrganizationsSupermarket, largescale shopping malls, chain shops, department store, star-rated hotels, restaurants;
    Public Places

    subway, airports, stations, bookstores, exhibition halls, stadiums, museums,

    commercial buildings, hospital;

    EntertainmentsMovie theaters, clubs, bars, cafes, Internet bars, beauty shops.

    Company Information

    PRECISION PRODUCTION

    Founded in 2002, Theodoor is located in Guangzhou innovation and development new areaSino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.


    INNOVATION TECHNOLOGY

    With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.



    Why choose Theodoor Air Curtain?


    Quality: High quality performance, more than 17 years manufacturing.

    Design: Fashion and utility. More than 100 models air curtain, suitable for different environments.

    Reliability: Lifetime testing lab in the factory. Enable long life time operation, continuous working 5000 hours without default.

    Engineer: Professional R&D and engineer teams focus on Air curtains.

    Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.

    Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensures that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.

    Quality control: 100% product performance testing.

    Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.


    Contact us to have more professional answers. Welcome to visit our factory. www.theodoor.com.cn
