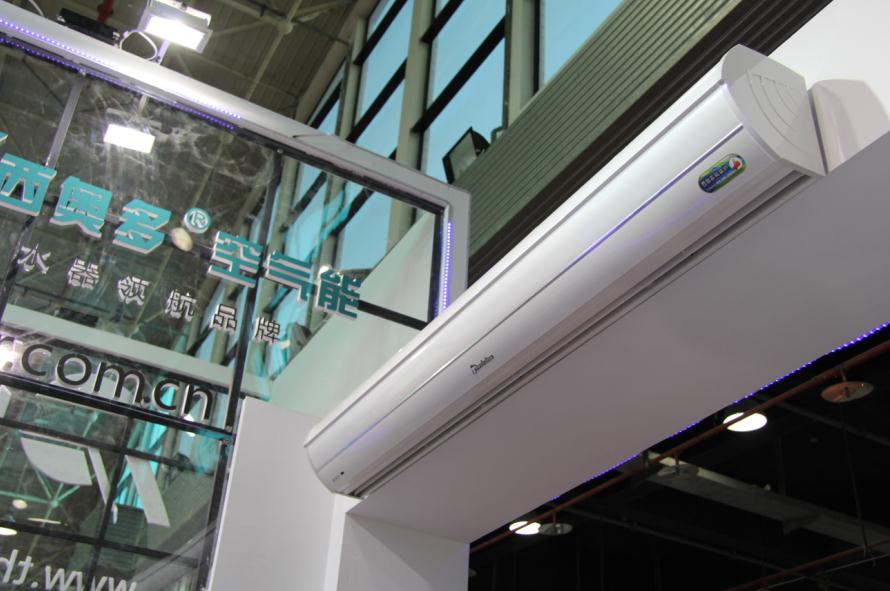

Centrifugal Type Fashion Wind Series Air Curtain With Aluminum
Cover, AC Partner
Feature:
Fashion design
Outside cover without screw, patent design of arc shape appearance
and thinner side cover.
Luxury materials
By aluminum cover body and combine with high precise ABS, never
rusty and easy disassembly; high velocity motor can operate
continuously 5000h without failure.
Centrifugal fan motor
Low noise centrifugal fan, with high air pressure and adjustable
air direction.
Easy operation
Available with remote control and touch screen; with high and low
speeds operation.
Specifications:
Model | Size (mm) | Volt./ Freq. | Power(W) | Air flow (m3/h) | Air speed (m/s) | Noise
| N.W (kg) |
(dB) |
FM-3509-L/Y | 900x215x230 | 220V-240V~ 50Hz/60Hz | 230 | 1100 | 16 | 49 | 13 |
FM-3510-L/Y | 1000x215x230 | 250 | 1200 | 49 | 13.5 |
FM-3512-L/Y | 1200x215x230 | 290 | 1500 | 50 | 15.5 |
FM-3515-L/Y | 1500x215x230 | 380 | 1900 | 52 | 20 |
FM-3518-L/Y | 1800x215x230 | 450 | 2280 | 54 | 23.5 |
FM-4009-L/Y | 900x215x230 | 300 | 1400 | 20 | 54 | 13 |
| FM-4012-L/Y | 1200x215x230 | 400 | 1900 | 55 | 15.5 |
| FM-4015-L/Y | 1500x215x230 | 500 | 2300 | 58 | 20 |
Company Information
PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and
development new area—Sino-Singapore Knowledge City (SSGKC) with an
area of 30,000 square meters. We have modern production workshop,
applying the most advanced industrial equipments and detecting
instruments to provide product manufacturing precision and
stability of extremely reliable guarantee. Theodoor has full series
products which meet different customized demand in different
countries or areas.
INNOVATION TECHNOLOGY
With consecutive creation and innovation, Theodoor has built up
national standard environmental simulation laboratory as well as
air curtain long-time running laboratory. What’s more, Theodoor has
accessed national invention and other patents more than 80 items,
leading the quality and performance of product upgrading in the
industry. Theodoor and the products had passed ISO9001, ISO14001,
CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications
etc.
FAQ
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an
air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
Why choose Theodoor Air Curtain?
Quality: High quality performance, more than 20 years
manufacturing.
Design: Fashion and utility. More than 100 models air curtain,
suitable for different environments.
Reliability: Lifetime testing lab in the factory. Enable long life
time operation, continuous working 5000 hours without default.
Engineer: Professional R&D and engineer teams focus on Air
curtains.
Machinery & technology: Advanced mould machines and equipments
ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the
end products we insist on results: safety, efficiency, energy
conservation and environmental protection, and our rigorous testing
ensures that we reach standards higher than similar products. We
want consumers to depend on the precision and reliability of our
Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains
with excellent quality and better performance, resulting in
increased cost saving.
