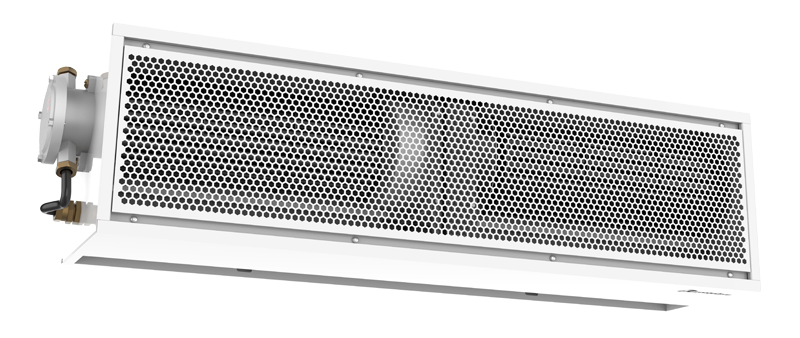

New Explosion-proof Air Curtain For Industrial Area, EX Explosion
Proof Motor, 39 Inch- 62 Inch
Feature:
Exquisite workmanship
All metal powder anti-rust thick body, square frame welded
structure is more solid and stable, durable.
Powerful air velocity
Metal cross-flow fan wheel, provide higher air volume, stable air
output and better isolation effect.
Explosion-proof property
Has obtained,
Explosion-proof air curtain, whole unit explosion-proof certificate
(N0.CJEx23.0770X);
Motor explosion-proof certificate (N0.CJEx23.0733X)
Equipped with explosion-proof terminal box, explosion-proof
certification of pure copper motor, Lab tests running for more than
8000 hours without failure. Explosion-proof mark: Ex dbⅡC T4Gb, higher explosion-proof grade than the general
explosion-proof machine (Ex dbⅡB T4) on the market.
Can be used in zone 1 or zone 2 explosive gas environments,
suitable for biopharmaceutical factory, chemical industry,
laboratory, gas station, warehouse and other occasions.
Installation height: 3-5m.
Specifications:

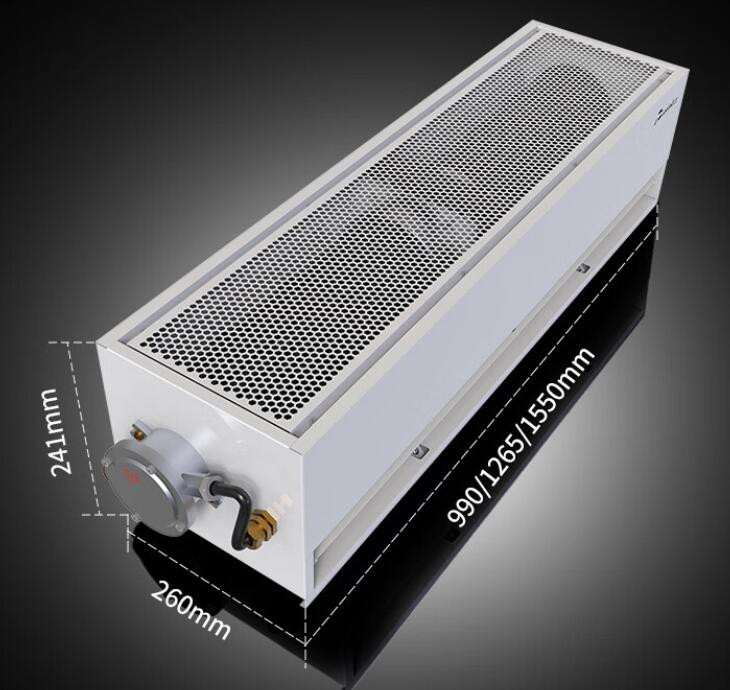

| Model | Dimension (mm) | Voltage (V/Hz) | Input power (W) | Air Volume (m3/h) | Air Speed (m/s) | Noise (db) | Net Weight (Kg) |
| FB-1509A | 990x241x260 | 380V /50Hz | 320 | 2420 | 16 | ≤68 | 20 |
| FB-1512A | 1260x241x260 | 450 | 3350 | ≤70 | 25 |
| FB-1520A | 1550x241x260 | 590 | 4280 | ≤72 | 31 |
Packing
Carton or optional double boxes packaging with foam protection.
Delivery
Professional container loading handling.
Company Information
PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and
development new area—Sino-Singapore Knowledge City (SSGKC) with an
area of 30,000 square meters. We have modern production workshop,
applying the most advanced industrial equipments and detecting
instruments to provide product manufacturing precision and
stability of extremely reliable guarantee. Theodoor has full series
products which meet different customized demand in different
countries or areas.
INNOVATION TECHNOLOGY
With consecutive creation and innovation, Theodoor has built up
national standard environmental simulation laboratory as well as
air curtain long-time running laboratory. What’s more, Theodoor has
accessed national invention and other patents more than 80 items,
leading the quality and performance of product upgrading in the
industry. Theodoor and the products had passed ISO9001, ISO14001,
CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications
etc.
FAQ
What's the main functions of Air Curtain?
1. Dust-proof, insect prevention
2. Isolate the smell
3. Energy saving
4. Comfortable heating
How to select suitable air curtain?
There are many factors that we have to consider when selecting an
air curtain, some of which are listed below:
1. Application
2. Door height
3. Door width
4. Outside wind
5. Building static pressure
6. Door structure
7. Ambient temperature
8. Air curtain size
9. Air curtain design and look
10. Noise level
11. Power consumption
Why choose Theodoor Air Curtain?
Quality: High quality performance, more than 20 years
manufacturing.
Design: Fashion and utility. More than 100 models air curtain,
suitable for different environments.
Reliability: Lifetime testing lab in the factory. Enable long life
time operation, continuous working 5000 hours without default.
Engineer: Professional R&D and engineer teams focus on Air
curtains.
Machinery & technology: Advanced mould machines and equipments
ensure products performance and reliability.
Materials and Quality: At every stage, from raw materials to the
end products we insist on results: safety, efficiency, energy
conservation and environmental protection, and our rigorous testing
ensures that we reach standards higher than similar products. We
want consumers to depend on the precision and reliability of our
Air Curtain machinery.
Quality control: 100% product performance testing.
Cost saving: We provide long-life and high reliability air curtains
with excellent quality and better performance, resulting in
increased cost saving.
Contact us to have more professional answers. Welcome to visit our
factory. www.theodoor.com.cn
