Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating

Guangzhou Theodoor Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating from wholesalers

    Buy cheap Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating from wholesalers
    • Buy cheap Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating from wholesalers
    • Buy cheap Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating from wholesalers
    • Buy cheap Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating from wholesalers
    • Buy cheap Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating from wholesalers

    Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating

    Ask Lasest Price
    Brand Name : Theodoor
    Model Number : RM-12**CS
    Certification : ISO 9001, ISO14001, CCC
    Price : Negotiable
    Payment Terms : T/T or L/C at sight
    Supply Ability : 10,000pcs per month
    Delivery Time : 30 working days after received your payment
    • Product Details
    • Company Profile

    Stainless Steel Ceiling Wind Heated Commercial Air Thermal Curtain With Fan Cooling And Heating

    Stainless Steel Ceiling Wind Heated Commercial Air Curtain With Cooling / Heating

    (Ceiling Wind Heating Air Curtain)


    Feature:

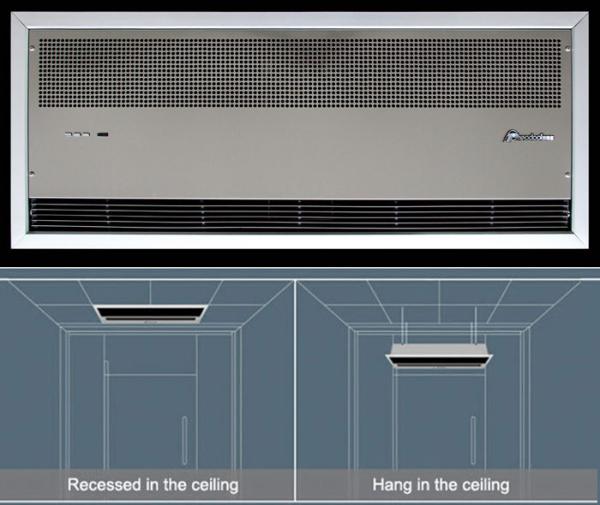

    Recessed design

    It is available to insert into the ceiling or hanging design. It’s for special situations where the glass door is unable or lacks of enough space for side installation.


    Full metal outer cover and aluminum alloy air inlet panel; It is environmental-friendly and easy to be cleaned, besides, has high performance for fireproof.


    High Efficient and Performance

    High efficient of heat conversion, uncharged PTC Heater and fast temperature rising.
    Optimized motor, tangential fan wheel and technical airway design; Low noise and long life operation.


    Safety & Reliability

    Triplicate Security Protection: Thermal protector, Varistor and fuse;

    Automatic postpone safety protection when power off.


    Specifications:


    Model

    Size

    (mm)

    Volt./ Freq.

    Motor Power

    (W)

    PTC heater

    Power (kW)

    Air volume

    (m3/h)

    Air speed

    (m/s)

    Temp. rising (K)

    N.W (kg)

    Hi

    low

    H

    M

    L

    RM-1209CS-3D/Y

    937x440x211

    380v~

    50Hz

    160

    110

    6

    4

    2

    1350

    8-9

    21-25

    19

    RM-1210CS-3D/Y

    1037x440x211

    180

    130

    7

    5

    2

    1550

    21-25

    21

    RM-1212CS-3D/Y

    1217x440x211

    200

    150

    8

    5

    3

    1850

    21-25

    25

    RM-1215CS-3D/Y

    1497x440x211

    230

    180

    10

    7

    3

    2400

    21-25

    29

    RM-1218CS-3D/Y

    1831x440x211

    280

    230

    12

    8

    4

    3050

    21-25

    33


    Applications:

    Theodoor Air curtain is installed above the entryway of shopping malls, stores, hotels, restaurants, hotel…

    etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration

    equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside.

    In this way, a comfortable indoor climate is maintained.



    Company Information

    PRECISION PRODUCTION

    Founded in 2002, Theodoor is located in Guangzhou innovation and development new area—Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.


    INNOVATION TECHNOLOGY

    With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as air curtain long-time running laboratory. What’s more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.
