    2024Hot Water Industrial Heating Air Curtain Water Source Fan Coil Air Door

    Ask Lasest Price
    Brand Name : Theodoor
    Model Number : RM-35**S
    Certification : ISO 9001, ISO14001, CCC, CE
    Price : Negotiation
    Payment Terms : T/T or L/C at sight
    Supply Ability : 10,000pcs per month
    Delivery Time : 30 working days after received the payment
    • Product Details
    • Company Profile

    2024Hot Water Industrial Heating Air Curtain Water Source Fan Coil Air Door

    Hot Water Industrial Heating Air Curtain Water Source Fan Coil Air Door

    Specifications:


    Model

    Size

    (mm)

    Volt./

    Freq.

    Motor

    Power

    (W)

    Circulation water temp.100-65℃

    Air

    volume

    (m3/h)

    Air

    speed

    (m/s)

    N.W

    (kg)

    Hi

    low

    water flow

    (m/s)

    water vol.

    (kg/h)

    Water

    resistance

    (Pa)

    Air outlet

    temp.

    Heat

    dispersal

    capacity

    (kW)

    RM-3509-S

    900x280x280

    220v~

    50Hz

    160

    110

    0.49

    878

    2036

    53

    20

    1400

    9-11

    19

    RM-3512-S

    1200x280x280

    200

    150

    0.65

    1170

    2715

    53

    28

    1900

    24

    RM-3515-S

    1500x280x280

    230

    180

    0.82

    1460

    3390

    53

    36

    2500

    29

    RM-4009-S

    900x375x280

    220v~

    50Hz

    230

    180

    0.49

    878

    2036

    53

    20

    2800

    11-14

    26

    RM-4012-S

    1200x375x280

    350

    300

    0.65

    1170

    2715

    53

    28

    3750

    31

    RM-4015-S

    1500x375x280

    430

    380

    0.82

    1460

    3390

    53

    36

    4700

    36

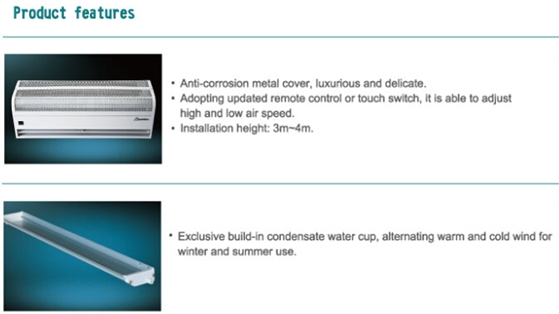

    Feature

    Water source air curtain: Made of galvanized steel cover; Safety water heating coil; high heat dispersion.
    High Efficiency
    Multi-layer compound fan coil, suitable to connect hot or cold water with low consumption and high heat
    dissipation.
    Optimized motor with safe and reliable performance; Running for 5000 hours continuously without failure;
    Humanized Design
    Preset left and right side 2 ways water inlets, thus, can meet different mounting occasions;
    Exclusive stainless aluminum alloy condensate water collection plate much more suitable for commutative use in
    summer and winter.




    Applications:

    Theodoor Air curtain is installed above the entryway of store, restaurant, hotel…etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air-conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
