Split Type heat pump X5-E Series
Air Source Residential Heat Pump , Split Type Heat Pump With LCD Controlling

Description:

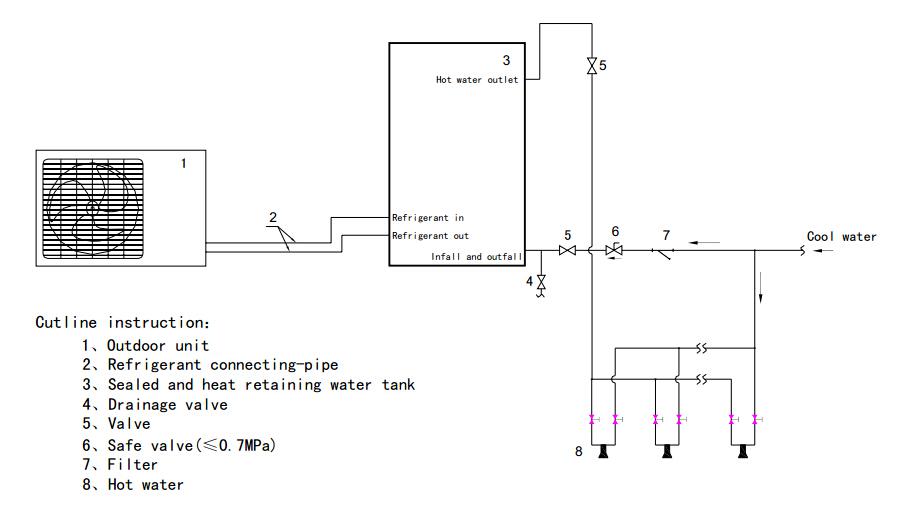

1. Split type heat pump X5 unit and water tank separate from the host installation Connecting through the
connecting pipes, which is easy to install. Generally, host is installed in the outdoor, and heat exchanger
water tanks can be installed in indoor or outdoor.
2. With back-up heating element, offer hot water in a short when there is high demand.
3. Save energy, saving more energy by 70% comparing with ordinary water heater.
4. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't
contaminate the ozonosphere. So it benefits the society.
5. Supply water anytime, and not be affected by geographical and weather changing.
6. Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.

Applications:
The Split type heat pump X5E can be installed at veranda, garage or other place which offers easy installation and stability.

1. Air source heat pump technology:
Heat pump is a promising technology that used the same mechanical principles as refrigerators and air conditions to generate hot water.
(The heat pump works by extracting heat from the surrounding air/water/soil and using it to heat low pressure liquid refrigerant in the heat pumps evaporator, vaporizing the liquid.
The refrigerant then passes through the compressor, which raises the refrigerant pressure and thus the temperature as well. The heated refrigerant gas passed through the heat pump condenser, where gives is off its heat to the water and condenses back into the liquid state.
The liquid refrigerant then passed through an expansion valve or capillary where the pressure is reduced and the cycle starts over. )
Generally, air-source heat pump water heaters work much like a refrigerator in reverse. The heat pump extracts the heat from warm air, intensifies the heat with a compressor, delivers the heat to the water, and exhausts the cooler air. Because it uses the warm ambient air temperature to do most of the work, it is a very efficient way to heat water.

2. Optimized use of Heat Pump technology
Heat pumps are inherently clean and reliable, and traditionally use water to water or air to air technology. Our air to water system, however, represents the best of both technologies, combining the accessibility of air as the heat source, low investment cost, emission free operation, easy installation and maintenance, with the comfort of using water based heating system.

3. Energy Saving
Compared to conventional heated equipments such as electricity resistance heater, gas/oil boiler and solar heater, a heat pump operate as a cost as little as 25%.

4. Environment Friendly
A heat pump will not release harmful materials into the nature. Also using heat pump as a heating solution will greatly reduce the emission of carbon dioxide.

5. Wide Range of Applications
Heat pump is an optimal house heating and domestic hot water heating solution in residential and a variety of commercial applications. It is also widely used in pool water heating industry.

6. Mainly Composing Parts
Heat pump mainly consists of a compressor, fan (applicable to air to water), evaporator, condenser, and expansion valve (or capillary).
